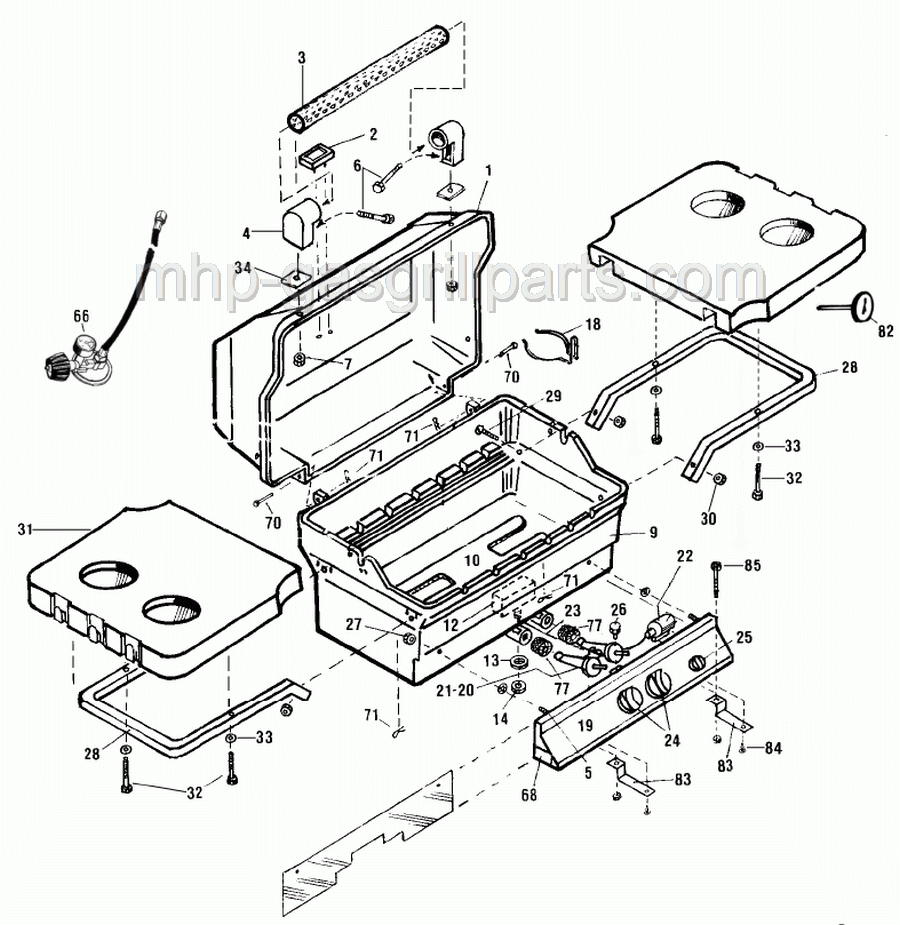

Grill model: TJK

2

GG-TG4 Round temperature gauge. Fits MHP Grills JNR, WNK, TJK, GJK, WRG, TRG.

• 2 1/2" diameter.
• Single prob
• Requires 3/8" mounting hole MORE...

4

GG-SHC-SET Handle end caps, set of two # GG-SHC, for right and left side of stainless steel handle, with screws & gaskets for JNR, TJK, TRG, WNK, WRG.

Also included in handle kit GG-HANKIT.

Note: Part GG-SHC-SET is the factory authorized replacement for the following parts, which are no longer available:

• MHP:GG-SHCL

MORE...

4B

GG-SHC Handle End Cap for right or left side of stainless steel handle, includes screw & gasket for JNR, TJK, TRG, WNK, WRG. Cannot be used with the old end cap GG-SHCL (left side) or old end cap GG-SHCR (right side) which are being discontinued.

Also included in handle kit GG-HANKIT and HH-HANKIT.

Note: Part GG-SHC is the factory authorized replacement for the following parts, which are no longer available:

• MHP:GG-SHCR
• MHP:HH-SHC

MORE...

8

GG-TS Stainless Steel swing away warming rack. MORE...

10

GG-DLB13 Stainless steel twin H burner and venturi assembly.Fits WNK and TJK grills. Includes:

• One (1) GG-DLB SS twin H burner.
• One (1) GG-DV-13 bolt-on twin venturi.
• All necessary gaskets and hardware. MORE...

10

GG-DLB Large stainless steel twin H burner.

NOTE: This burner uses bolt-in venturis, such as part GG-DV13. It does not accept twist-in type venturis.

See part GG-DLB13 for both the burner and venturi in a kit. MORE...

10

GG-DV13 SS twin venturi. For use with GG-DLB and HH-DSB H burners. Includes gaskets and hardware, and spider guards. Fits JNR, WNK, and TJK grills. MORE...

12

GG-IB Ignitor Box Assembly for Grill Replacement Parts for JNR, WNK, TJK MORE...

14

GG-JN 1/8-27 Jam nut. MORE...

15

GG-GRATE-SS Stainless steel, 304 grade, rock grate with 1/4" rods for WNK & TJK model grills. Replaces former porcelain steel rock grate # GG-GRATE-P.

Note: Part GG-GRATE-SS is the factory authorized replacement for the following parts, which are no longer available:

• MHP:GG-GRATE-P

MORE...

16

GG-SS-GRID Heavy-duty stainless steel cooking grid for GJK, WNK, and TJK series grills.

• High grade stainless
• 5/16" solid stainless rods
• Sold individually. MORE...

18

GG-GCH Grease Cup Holder For Grill Replacement Parts for JNR, WNK, TJK MORE...

19

GG-CP WNK Control Panel - includes control panel label GG-CPLBL, but does not inlcude Deflector Shield # GG-DEF sold separately.
WARNING: This control panel is made for battery igniter GG-EIB and connector wire GG-ERIW for WNK3 and WNK4 models, and it will not accommodate the rotary igniters used in the original WNK model. The original control panel was discontinued. For the original WNK model, you will need to purchase a new ignitor and connector wire. MORE...

20

GG-VLV32 Natural Valve for WNK/TJK MORE...

21

GG-VLV28 Brass twin LP valve assembly for WNK/TJK grills. Includes orifices drilled to #55 for LP applications. MORE...

22

GG-RI Single outlet rotary ignitor. Fits JNR, WNK, TJK. MORE...

23

GG-RIW 12" connecting wire for use with rotary igniters. Does not fit battery-operated electronic igniters. Female spade connector on one end connects to electrode, female round connector on the other end connects to rotary igniter. FIts older JNR, WNK, and Patriot grills. MORE...

24

GG-K10 Main control knob for JNR, WNK, TJK.

• Off position D-Value: 6 o'clock
• Knob diameter: 1 7/8"
• Socket diameter: 5/16"
• Knob shaft: 1/4" MORE...

25

GG-K9 Rotary Ignitor Knob (Sometimes manufacturer supplies with white arrows or black imprinted arrows.) MORE...

31

GG-DDSKG Left & Right Drop Down Stainless Steel Side Shelf Kit Complete. Double Stainless Steel Drop Down Shelf Kit Includes (2) Sets of Drop Down Brackets, (2) Side Shelves & Hardware. Fits: WNK, TJK, WHRG, WRG, THRG, TRG, W3G, T3G Model Grills.

NOTE: Per MHP, for some models, the end user would need to drill a second hole for each bracket in the bottom casting. MORE...

31

HH-DDSKG Stainless steel drop down side shelf kit can be used on right or left sides; includes hardware. The BBQ tools' hangers are on the end of the side shelf. (Previously, there were right and left side shelves with the BBQ tools' hangers on the front of the shelves.)

Note: Part HH-DDSKG is the factory authorized replacement for the following parts, which are no longer available:

• MHP:HH-DDSKRHG

MORE...

70

GG-LPP Lid Pivot Pin For BBQ'er Choice Replacement Parts for JNR, WNK, TJK. See Hitch Cotter Pin GG-LPP-1 used on GG-LPP. MORE...

71

GG-LPP-1 Hitch Cotter Pin. Used on part GG-LPP (Lid Pivot Pin) and burner parts GG-DSB, HH-DSB. MORE...

81

GG-DEF Deflector Shield for Control Panel WNK/TJK MORE...

83

GG-CPB Control Panel Bracket repair part for JNR, WNK, TJK MORE...

99

GG-CPLBLE Control panel (stick-on) label for WNK and TJK models with either the electronic or rotary style ignitor systems and does not include the stainless steel control panel. Use with the black control knobs part number GG-K10-SET. 20 7/8" x 3 1/8" is the size of the label.
NOTE: Control panel label ignitor cutout may not properly align with the rotary ignition switch on earlier model grills from the 1990s. For these early models with the offset ignitor cutout use the GG-CPLBL vintage control panel label.*_*_*

Note: Part GG-CPLBLE is the factory authorized replacement for the following parts, which are no longer available:

• MHP:GG-CPLBL

MORE...

99

GG-CVPREM Premium quality black mid-length vinyl grill cover.

• Constructed of durable vinyl
• Velcro closure allows for easy on-off
• Designed to cover grills with shelves in the up position

MORE...

99

GG-RIC Rotary Ignitor kit for JNR, WNK, TJK.

Includes:
• GG-RI Rotary spark generator
• GG-K9 Knob
• GG-IB Electrode & Collector box
• GG-RIW Connecting wire MORE...

T2

GG-TG4 Round temperature gauge. Fits MHP Grills JNR, WNK, TJK, GJK, WRG, TRG.

• 2 1/2" diameter.
• Single prob
• Requires 3/8" mounting hole MORE...

T3

GG-TSH TJK Stainless Steel Handle MORE...

?

GG-K9 Rotary Ignitor Knob (Sometimes manufacturer supplies with white arrows or black imprinted arrows.) MORE...

?

GG-BQ3 Porcelain Briquettes for WNK model grills. Exclusive self-cleaning Flavor Master long lasting porcelain briquettes provide food with a cleaner, fresher and better barbecue flavor. Unlike metal flavor plates/bars, the Flavor Master briquettes will not rust. Contains 67 briquettes and covers approximately 385 sq. inches. Made in USA. MORE...

?

GG-GC-SET Grease Cup & Holder for JNR, WNK, TJK MORE...

?

GG-GC Stainless steel grease cup for JNR, WNK, and TJK. MORE...

?

GG-SSGRIDAMC Channel Design Stainless Steel Cooking Grid for MHP Grill Models. Sold individually, requires two pieces. MORE...

?

GG-TG3 Rectangular heat indicator for old style MHP grills that has two pegs and a center probe to mount through the casting. It was used on older JNR and WNK grills. We are not sure when MHP changed to the newer heat indicator GG-TG4 that has one larger peg to mount. The GG-TG3 needs two small holes for mounting and one hole in the center for the probe. MORE...

?

GG-WB10 Narrow wooden brush with brass bristles for MHP SearMagic grids. Reinforced Bristle Retention - each brass bristle is folded, densely packed, and stapled into the wood handle to support secure placement under normal use. MORE...

?

GG-WB5 Forked wooden grid cleaning brush for MHP SearMagic grids. MORE...

?

CV4PREM Premium quality polyester lined vinyl cover, E-Z on velcro tabs. For large grills, full length.

• 60" left to right
• 20" front to back
• 42" top to bottom MORE...

?

GG-DLB13TL Stainless steel twin H burner and venturi assembly. Includes:

• One (1) twin SS H burner.
• Two (2) SS twist lock venturi.
• Built-in spider guards.
• Sold as assembly only, burner and venturi not available seperately.

Note: Part GG-DLB13TL is the factory authorized replacement for the following parts, which are no longer available:

• MHP:GG-DLB13

MORE...

?

GG-EIB Single outlet electronic ignitor. For 2005 models JNR, WNK, TJK. MORE...

?

GG-GRID-S SearMagic Cooking Grid for models THRG, TRG, TJK, WNK, WHRG, WRG, W3G, and T3G.

• High Performance, Rust-Free Anodized Aluminum Cooking Grids.
• Sold individually, number required varies

This unique cooking grid heats up faster and cooks all foods at a uniform temperature. Use the wide-ribbed side for grilling steaks, chops, burgers and ribs, branding them with the sear lines. Use the flip side, with its smooth surface for grilling delicate foods such as fish, seafood and vegetables. MORE...

?

GG-TS-S SearMagic Warming Rack for JNR, WNK, TJK, WRG, TRG. High Performance, Rust-Free Anodized Aluminum warming rack. This unique warming rack heats up faster and cooks all foods at a uniform temperature. MORE...

T32

GG-TSI Stainless Steel Insert For TJK Lid MORE...
